Unlimited-OCR, hands-on: long-horizon document parsing on a single RTX 4090

Most OCR you've used returns a flat wall of text. Unlimited-OCR is part of a newer family — seeded by DeepSeek-OCR — that treats a page as a document, not a string. Its output is interleaved layout tags and content: each region comes wrapped in a <|det|>TYPE [x1,y1,x2,y2]<|/det|> marker giving the region type (header, title, text, table, page_number, footer, image) and its bounding box, followed by the recognized text — or, for tables, an HTML <table> grid.

Those tags are the model's raw output. You rarely want to keep them — a consumer strips the coordinates and region labels and renders a clean document. Throughout this article I show the rendered Markdown, not the tag soup. The transform is mechanical:

title → ## heading, text → paragraph, table → a rendered table, and the running header / page-number tags are dropped. (A ~30-line det_to_markdown.py does this; the same converter feeds the demo at the end.)

"Long-horizon" is the pitch: the model is tuned to parse dense, multi-region pages in one shot inside a 32k-token context, rather than being fed pre-cropped lines. Two knobs dominate behaviour. image_mode is either gundam (tiles the page into 640 px crops — the single-image default) or base (one 1024 px view, no crop). And a custom no-repeat-ngram logit processor (ngram_size=35) is wired into the sampler to fight the repetition that long autoregressive OCR is prone to — hold that thought, it matters later.

The serving path is an SGLang server exposing an OpenAI-compatible streaming endpoint; infer.py (or my little demo) just POSTs images to /v1/chat/completions. Setup on the 4090 (Pop!_OS, CUDA 12.9) was a clean uv virtualenv — the pinned wheel brings its own CUDA torch, so there's no separate torch index to wrangle:

# 1. venv (asdf python 3.12) + model cache off the system drive
uv venv .venv --python "$(asdf which python)" && source .venv/bin/activate
export HF_HOME=/d/hugging_face_cache

# 2. install the pinned SGLang wheel (pulls torch 2.9.1+cu128) + helpers
uv pip install wheel/sglang-0.0.0.dev11416+g92e8bb79e-py3-none-any.whl
uv pip install kernels==0.11.7 pymupdf==1.27.2.2 requests

# 3. verify the GPU
python -c "import torch; print(torch.__version__, torch.cuda.is_available(), torch.cuda.get_device_name(0))"
# -> 2.9.1+cu128 True NVIDIA GeForce RTX 4090

Then launch the server with the model's expected flags (these are load-bearing, not decorative):

python -m sglang.launch_server \
    --model baidu/Unlimited-OCR --served-model-name Unlimited-OCR \
    --attention-backend fa3 --page-size 1 --mem-fraction-static 0.8 \
    --context-length 32768 --enable-custom-logit-processor \
    --disable-overlap-schedule --skip-server-warmup \
    --host 0.0.0.0 --port 10000
# wait for: "The server is fired up and ready to roll!"

And run inference over a folder of images or a PDF (each PDF page is rasterized at 300 DPI and sent as one request):

# a directory of page images
python infer.py --image_dir ./arabic --output_dir ./out \
    --concurrency 8 --image_mode gundam

# or a PDF (e.g. the paper itself)
python infer.py --pdf ./Unlimited-OCR.pdf --output_dir ./paper_out \
    --concurrency 6 --image_mode base

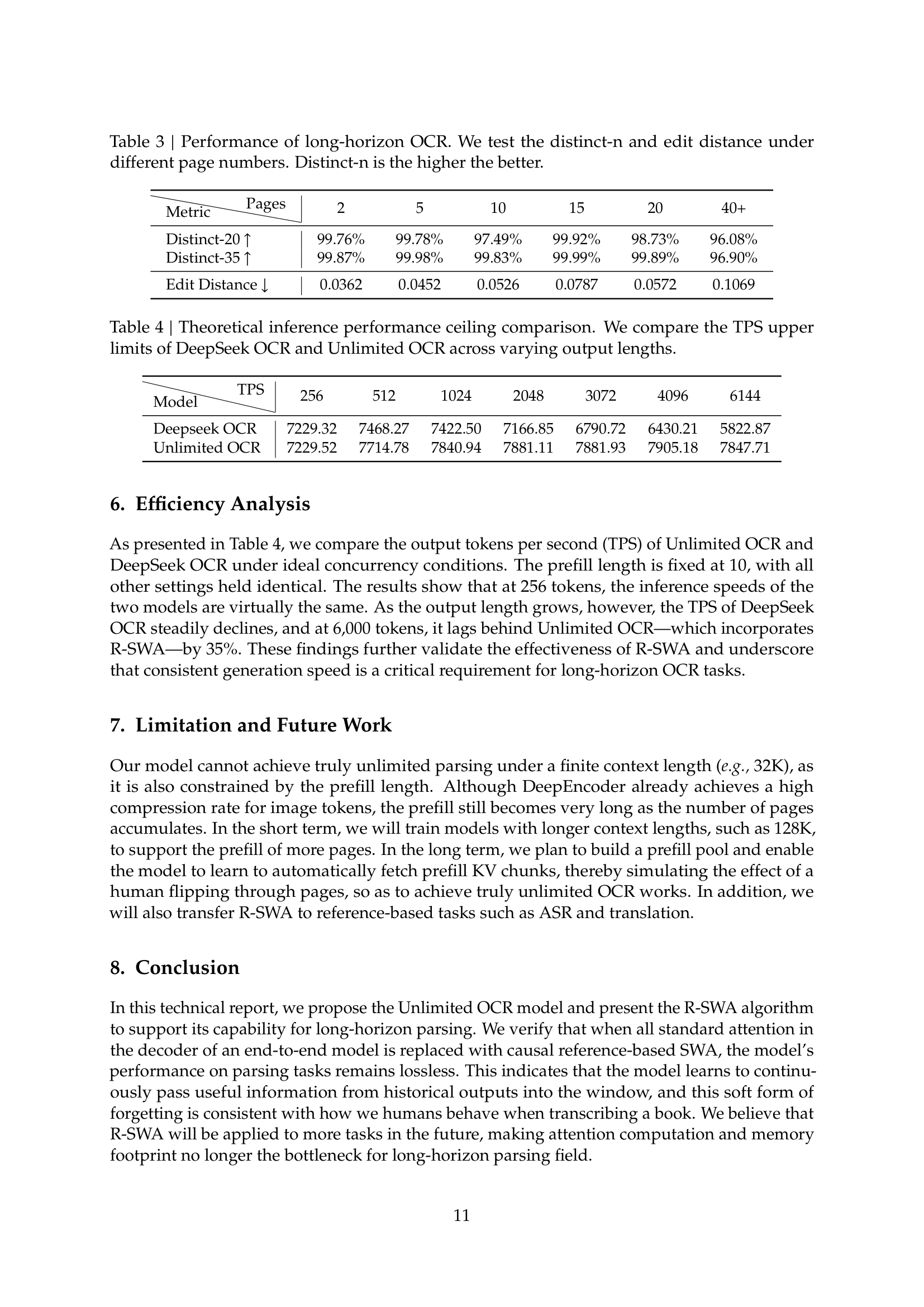

Start with the easy, real-world case: crisp modern English. The most honest test document was the model's own 14-page paper — so here is page 11, a page that mixes two data tables with three prose sections, beside the rendered Markdown Unlimited-OCR produced from it (det tags stripped). The OCR ran in base mode in ~5 s.

rendered Markdown (out)

Table 3 | Performance of long-horizon OCR. We test the distinct-n and edit distance under different page numbers.

Metric\Pages	2	5	10	15	20	40+
Distinct-20 ↑	99.76%	99.78%	97.49%	99.92%	98.73%	96.08%
Distinct-35 ↑	99.87%	99.98%	99.83%	99.99%	99.89%	96.90%
Edit Distance ↓	0.0362	0.0452	0.0526	0.0787	0.0572	0.1069

6. Efficiency Analysis

As presented in Table 4, we compare the output tokens per second (TPS) of Unlimited OCR and DeepSeek OCR under ideal concurrency conditions … at 6,000 tokens, it lags behind Unlimited OCR—which incorporates R-SWA—by 35%.

7. Limitation and Future Work

Our model cannot achieve truly unlimited parsing under a finite context length (e.g., 32K), as it is also constrained by the prefill length …

8. Conclusion

In this technical report, we propose the Unlimited OCR model and present the R-SWA algorithm to support its capability for long-horizon parsing …

— page 11 —

This is the result that recalibrates everything else in the article: on clean print the text recognition is essentially flawless. The prose comes through verbatim (em-dashes, R-SWA, (e.g., 32K) and all), the three numbered headings become ## Markdown headings, and the two tables render with the numbers intact. Whatever struggles we see later on Arabic are about the input, not a weak model.

Tables are where structured OCR earns its name. The model emits each table as an HTML <table>, which renders straight into Markdown. Below are the actual reconstructed tables from page 11 — shown as rendered Markdown, checked cell-by-cell against the source image:

No cell drift, no transposed digits, header row preserved. For digitizing reports, statements or papers, this is genuinely production-grade — and it stands in sharp contrast to the Arabic tables in the next sections, where the grid survives but the numeric cells do not.

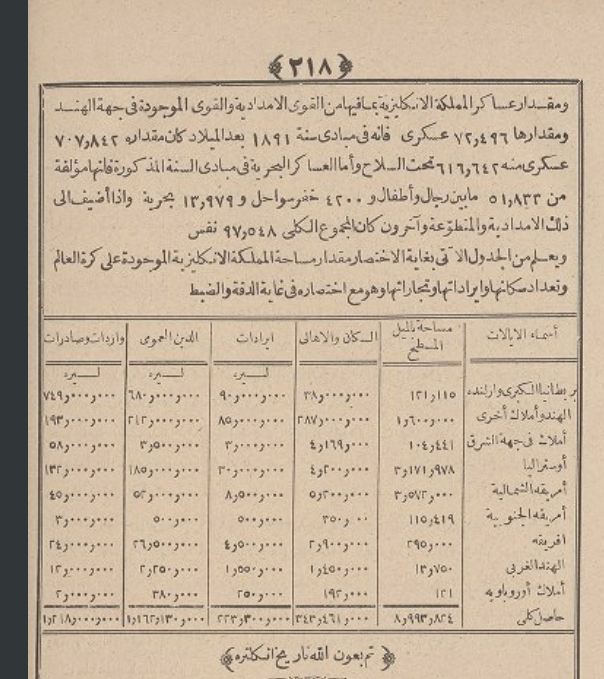

Now the stress test. These 39 images are screenshots of a scanned, late-19th-century Arabic history book (visible page numbers ١٨٠–٢١٨). About as unfriendly as OCR input gets: Naskh metal type on yellowed paper, partial tashkeel (vowel diacritics), tight leading, footnote catchwords, and dense statistical tables of Arabic-Indic numerals.

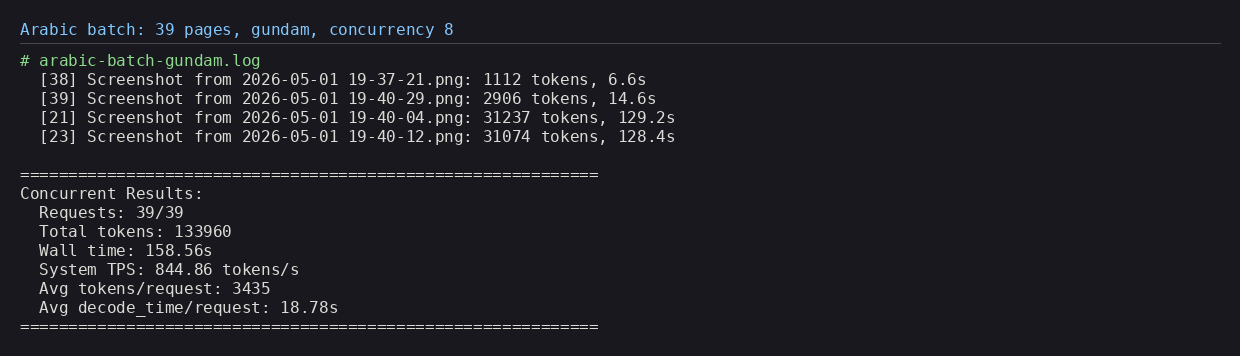

I ran all 39 through infer.py in gundam mode at concurrency 8, then re-ran the problem pages in base. There's no ground-truth transcription, so the Arabic text-accuracy figures are a reading-based estimate by an Arabic reader, not a measured CER/WER — the structural and token metrics, by contrast, are exact.

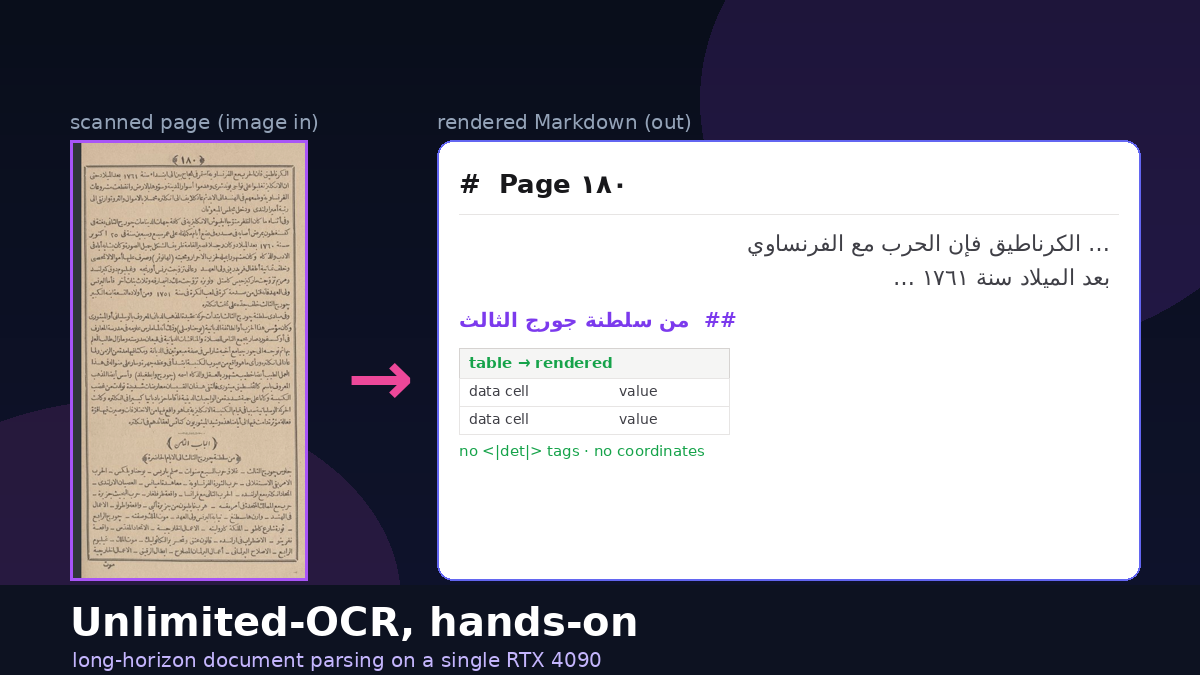

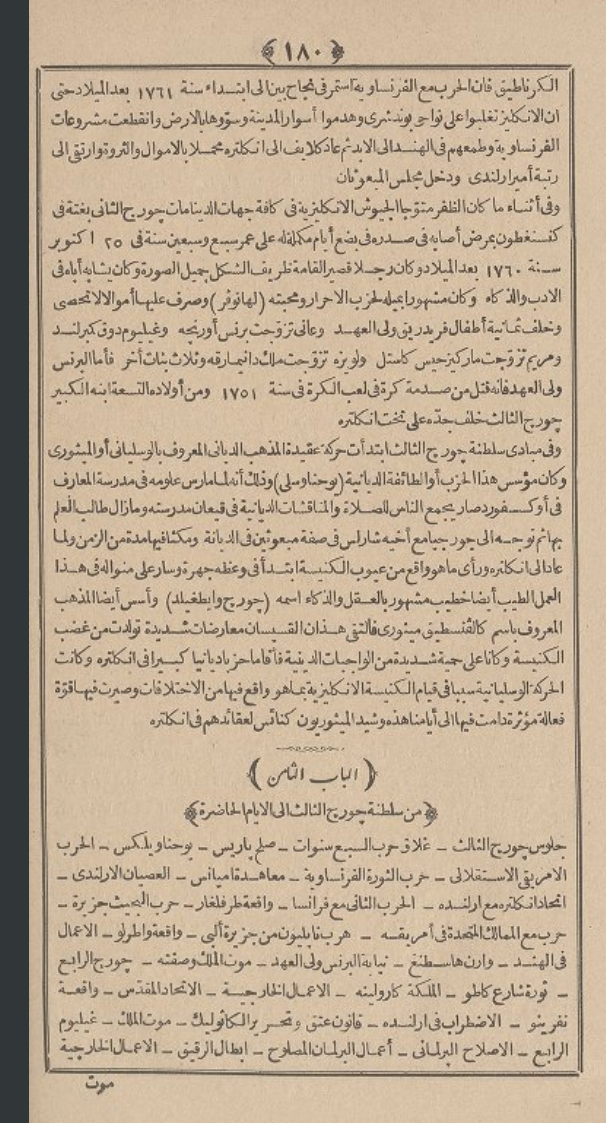

The good news is that the headline feature is script-robust. Across the 39 pages the model emitted 950 layout regions (~24 per page) and segmented the furniture cleanly: 33 headers, 12 page-numbers, 13 footers and 889 body blocks, plus table regions. Reading order came out right-to-left, top-to-bottom, with the running header and bottom catchword correctly separated. Here is page ١٨٠ rendered to Markdown (det tags stripped, RTL preserved):

Read it as an Arabic speaker and the structure and gist are right — the running header, the body flow, the date ١٧٦٠ — but words like فاناحربمع (should be فإن الحرب مع) show the character-level errors this historical type produces. That's the honest split: layout right, fine text shaky.

Flip to the content of those boxes and it's more sober. On the cleaner prose lines the subject matter survives — George III, the French Revolution, Paris, the cotton trade — and Arabic-transliterated proper nouns are often recovered. But at the character level this historical typeface with its diacritics yields frequent letter/dot errors, broken ligatures and noisy tashkeel. Honest estimate: ~60–80% word accuracy on the good pages, lower on faded text — fine for search and gist, not for republication without a human pass.

Numbers are the weak point

Long Arabic-Indic numerals are the worst category. In the table cells they collapse into runs of repeated digits — the same numeric ambiguity that, on the English paper, the model handled perfectly. Here it's the seed of the runaway in the next section. Treat any digit in the Arabic output as unverified.

CJK hallucinations

On 10 of 39 pages the output contained stray Chinese/Japanese glyphs — 年 月 日, 薄荷 ("mint"), 侧面, 奨. The tell of a CJK-heavy base model meeting an ambiguous Arabic shape and decoding a visually-near token from the wrong script. No inference-time cure short of fine-tuning; a one-line CJK strip is a cheap post-filter for an Arabic-only corpus.

Two of the 39 Arabic pages took ~129 seconds and produced ~31,000 tokens each — vs the ~13 s and ~1,800 tokens typical — almost touching the 32k context ceiling. They weren't slow because they were dense. They were stuck in a loop.

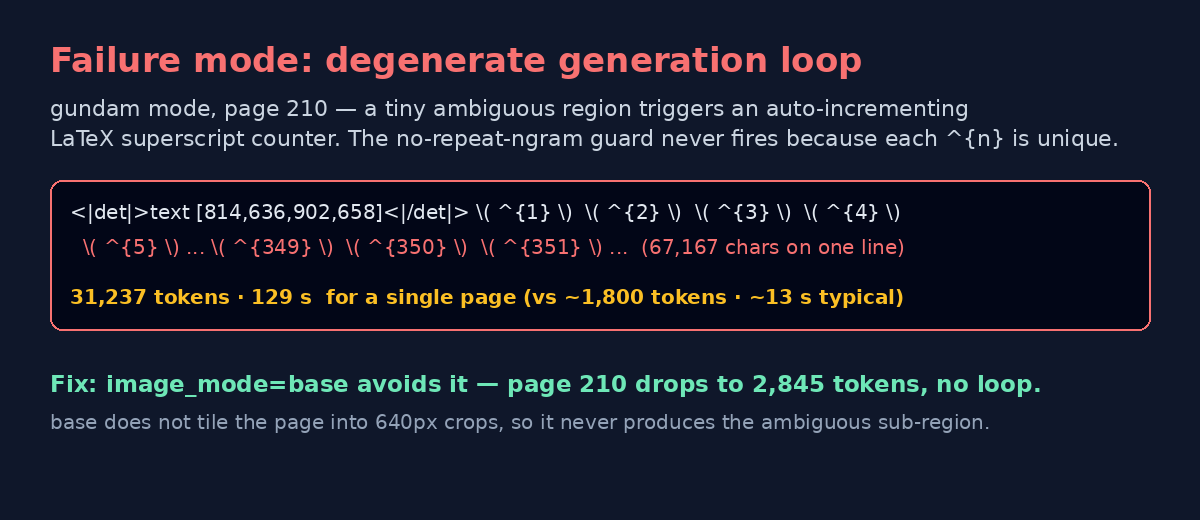

On page ٢١٠ — a pure prose page, not even a table — one detected region degenerated into an auto-incrementing LaTeX superscript counter: \( ^{1} \) \( ^{2} \) \( ^{3} \) … all the way to \( ^{351} \), a single line of 67,167 characters. The other runaway fell into an Arabic-Indic digit loop, ٢٥٢٥٢٥….

The fix above is mechanical. gundam tiles the page into 640 px crops; base sees the whole page at 1024 px. One of gundam's tiles produced the tiny ambiguous sub-region that seeded the loop — base never creates it.

Practical guidance from this run: for clean modern documents either mode is fine and base is fast and safe; for messy historical batches, prefer base and add a guard regardless — cap max_tokens per request, or post-filter any page whose longest output line exceeds a few thousand characters and re-run it. The trade-off is that base can lose fine detail on very dense small text, but a complete, sane page beats a perfect-then-runaway one.

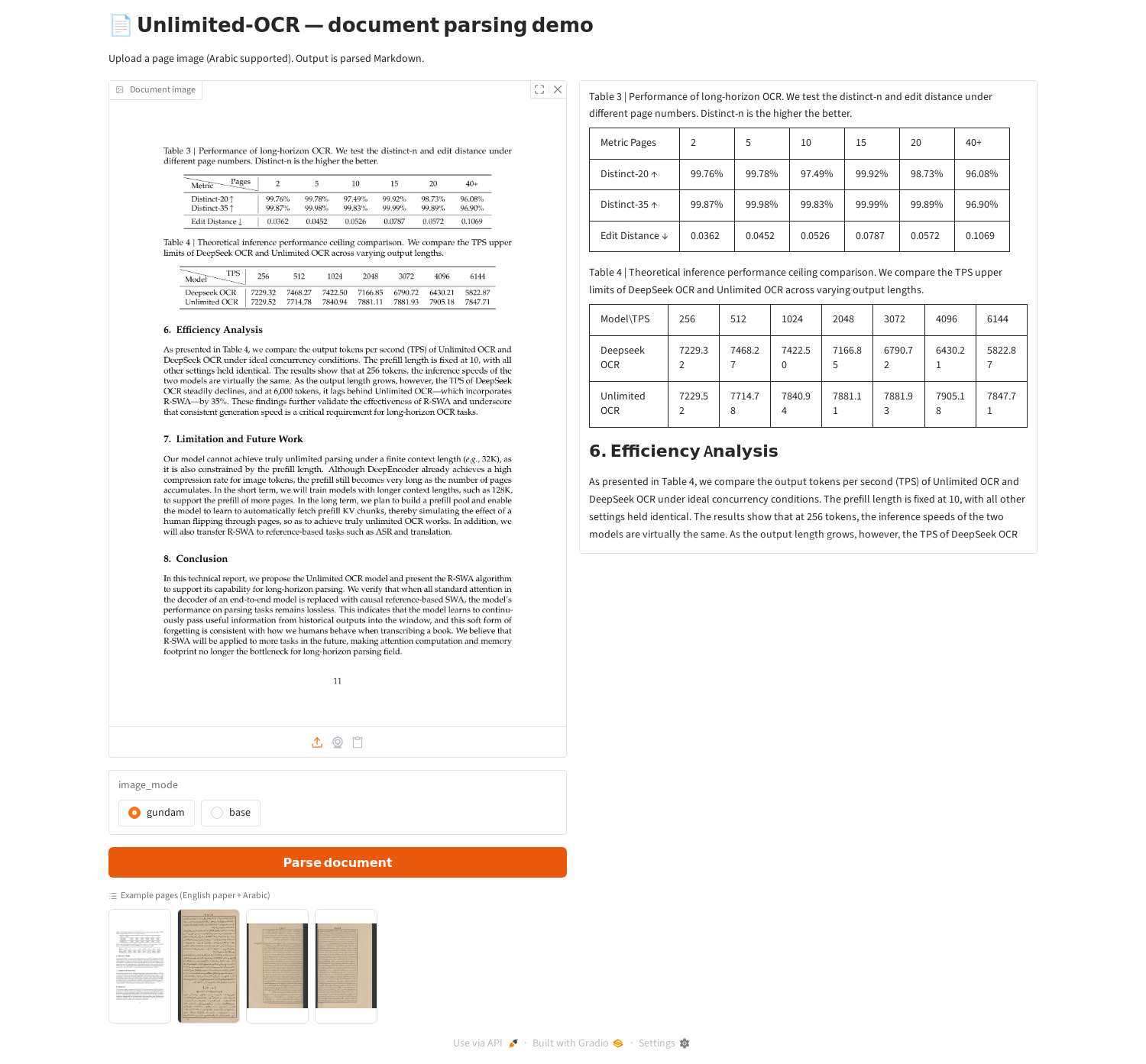

The repo ships no UI, so I wrote a ~90-line Gradio front-end (demo_app.py) that talks to the same SGLang endpoint and pipes the result through the same det_to_markdown.py converter: upload a page, pick gundam/base, and watch the rendered Markdown stream in — headings, paragraphs and tables, not raw tags.

Unlimited-OCR is a strong structured-OCR model with a clear comfort zone. On clean, modern documents it's genuinely production-grade: near-perfect text, correct section structure, and exact table extraction — at ~845 tokens/s on a single 24 GB card. If you're digitizing reports, papers or statements, reach for it.

On hard historical material — and especially non-Latin scripts like 1890s Arabic — recalibrate. You still get excellent layout (segmentation, reading order, table scaffolds, searchable gist), but budget a human correction pass, scrub the CJK glyphs and numbers, run in image_mode=base with a token cap to dodge the runaway. The model is strong; the skill is knowing which half of it to lean on for your documents.

• Unlimited-OCR — github.com/baidu/Unlimited-OCR · model on Hugging Face · arXiv:2606.23050
• DeepSeek-OCR (the lineage) — github.com/deepseek-ai/DeepSeek-OCR
• SGLang (serving) — github.com/sgl-project/sglang
• Served on a single NVIDIA RTX 4090 (24 GB) · image_mode ∈ {gundam, base} · 32k context · no-repeat-ngram sampler · illustrations generated with Nano Banana Pro
